Exposure Fuse E-Bike

$229.95 $279.00
18% off


  • Simple Returns

  • Super shipping

  • Price Guarantee

Description

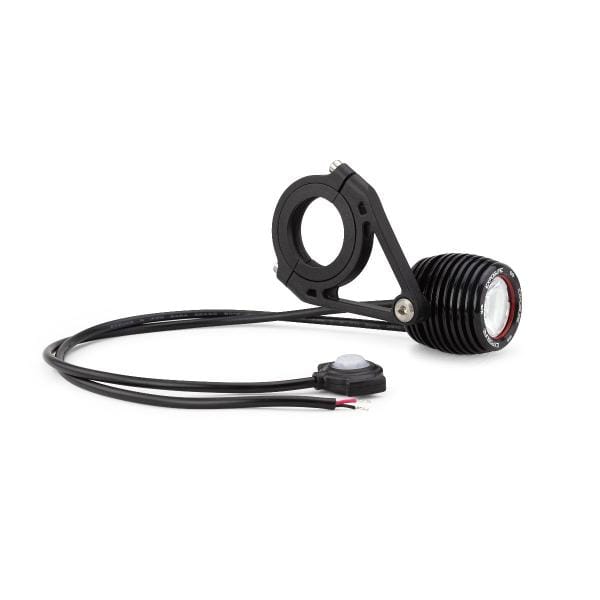

The Exposure Fuse is a compact front light for e-bikes that runs off the bike's own battery through the motor's light output, so there is nothing to charge. It puts out up to 1000 lumens depending on the motor, weighs 50 g, is rated IP65, and comes with a wired handlebar remote and a central-mounting handlebar bracket.

Who it's for

E-bike riders who want a proper light that is simply always there. The Fuse is built for fast road riding and the daily commute: the bike's battery powers it, so there is no forgetting to charge it, no flat light halfway home, and nothing to pull off the bars when you lock up. Leave it switched on and it comes on with the bike the next time you power up.

Brightness and runtime together

A single white XHP35 LED gives up to 1000 lumens. How much of that you see depends on your motor: the Fuse detects a 6 V or 12 V system by itself, and its current draw is set to match what the bike can supply. Runtime is simply your e-bike's battery, so the light runs for as long as the bike's battery does.

Mounting and installation

The single-sided reinforced nylon bracket puts the light in the centre of the bike and fits 25.4 mm, 31.8 mm or 35 mm bars with the supplied shims. It sits on the right of the stem angled down, so the cable runs cleanly under the stem, and the wired remote straps on near either grip.

Have it fitted by an authorised dealer for your motor brand. The light output usually needs switching on through the motor maker's diagnostics, and the current setting has to match the bike's output so the light never draws more than the motor can give. Exposure's installation guide covers Bosch, Brose and Yamaha systems.

Using it

  • Double press the remote to switch on
  • Single press to step through the modes
  • Hold for two seconds for the DayBright pulse
  • Hold for three seconds to switch off

Weather resistance

The body is anodised 6063 aluminium, 34 mm long with a 35 mm head, and the light is rated IP65.

Looking after it

Check the light and bracket before every ride. Wipe mud off the lens gently so it does not scratch, keep the hose and pressure washer away from it, and skip harsh or abrasive cleaners.

Specifications

  • Dimensions
    Length 34 mm, head diameter 35 mm
  • Material
    Anodised 6063 aluminium
  • Weight
    50 g
  • Max Lumens
    1000 lm (motor dependent)
  • Battery
    None - powered by the e-bike battery (6 V or 12 V motor output)
  • LEDs
    1 x white XHP35
  • IP Rating
    IP65

Sizing Guide

Additional Information

  • Power: e-bike battery via the motor light output, 6 V or 12 V auto-detected
  • Installation: by an authorised dealer for your motor brand
  • In the box: Fuse light, E-Bike Handlebar Bracket, quick start guide
  • Bracket shims: 25.4 mm, 31.8 mm and 35 mm bars

FAQ's

Does the Exposure Fuse e-bike light need charging?
No. The Exposure Fuse has no battery of its own; it runs off your e-bike's battery through the motor's light output, so it is powered whenever the bike is.

Will the Exposure Fuse work with my e-bike?
The Exposure Fuse detects a 6 V or 12 V motor light output automatically, and Exposure's installation guide covers Bosch, Brose and Yamaha systems. The bike's light function must be enabled for it to work.

Can I install the Exposure Fuse myself?
Exposure ask that the Fuse is fitted by an authorised dealer for your motor brand. Enabling the light output needs the motor maker's diagnostics, and the light's current setting must match the bike's output to protect the motor.

How bright is the Exposure Fuse?
The Exposure Fuse gives up to 1000 lumens from a single white XHP35 LED. The output you get depends on how much power your e-bike motor supplies to its light output.

What handlebars does the Exposure Fuse bracket fit?
The Exposure Fuse comes with a single-sided reinforced nylon bracket that fits 25.4 mm, 31.8 mm and 35 mm handlebars with the supplied shims, putting the light in the centre of the bike.

Is the Exposure Fuse waterproof?
The Exposure Fuse is rated IP65 and built from anodised aluminium. Exposure advise against using a high pressure spray or hose on it when cleaning.

Why won't my Exposure Fuse turn on?
If the Exposure Fuse will not turn on, check that the light function is active on your e-bike's console. A dealer may need to enable the light output through the motor diagnostics.
