Compass 55-6400/360 MS

$369.00

with complimentary shipping



own it from $10/wk

  • Climate Positive

  • No Bullsh!t Returns

  • Super shipping

  • Price Guarantee

Description

The Silva 55-6400/360 MS Mils Compass is an upgraded replacement for the NSN'd Silva 54/6400B Compass. It features improved readability and distinct markings, making it one of the most versatile compasses globally, particularly for artillery, target acquisition, and command posts. The 55 combines an optical precision sighting system with the SILVA 1-2-3 SYSTEM compass in a single unit, ensuring unmatched precision and versatility in the field. Bearings can be measured with an accuracy of within half a degree.

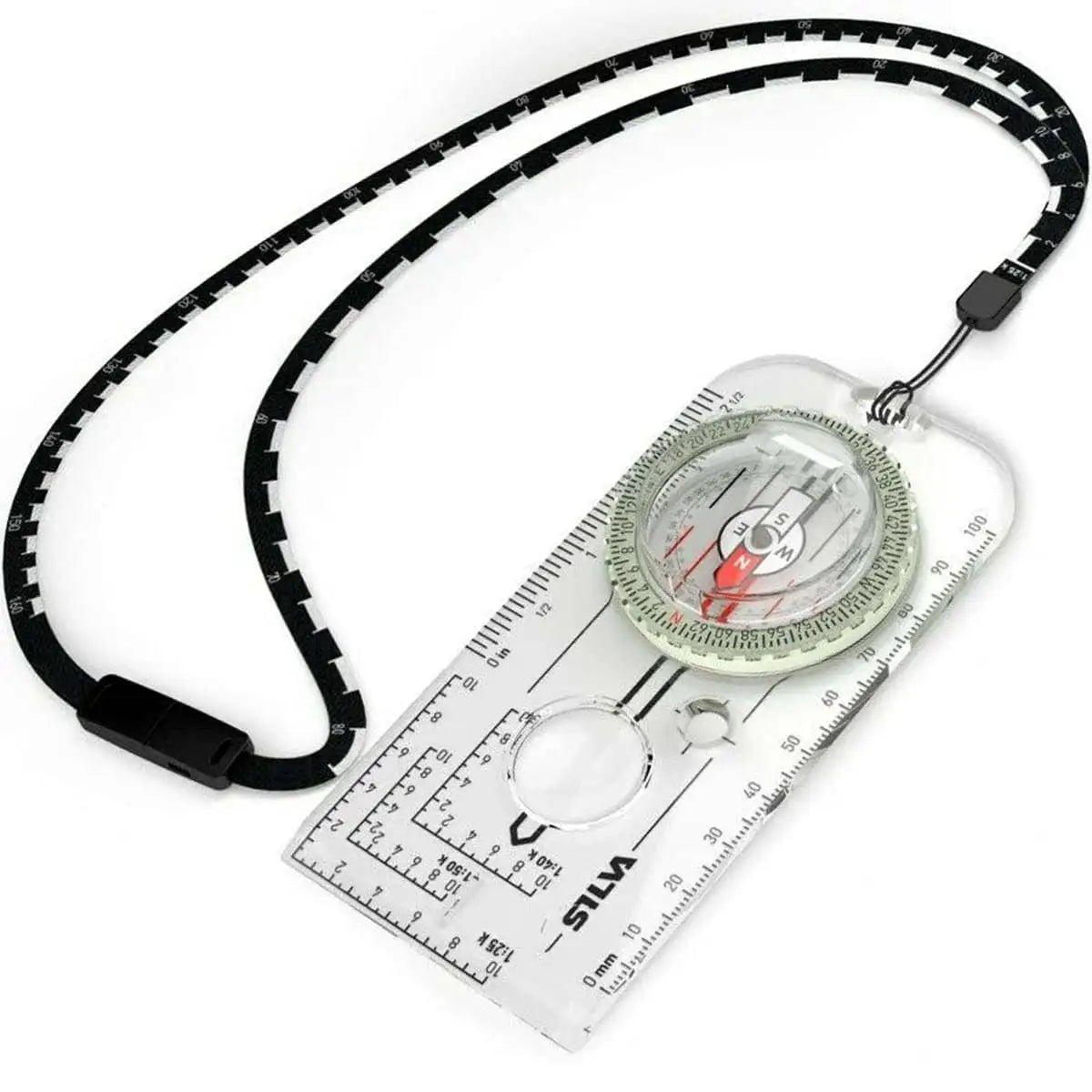

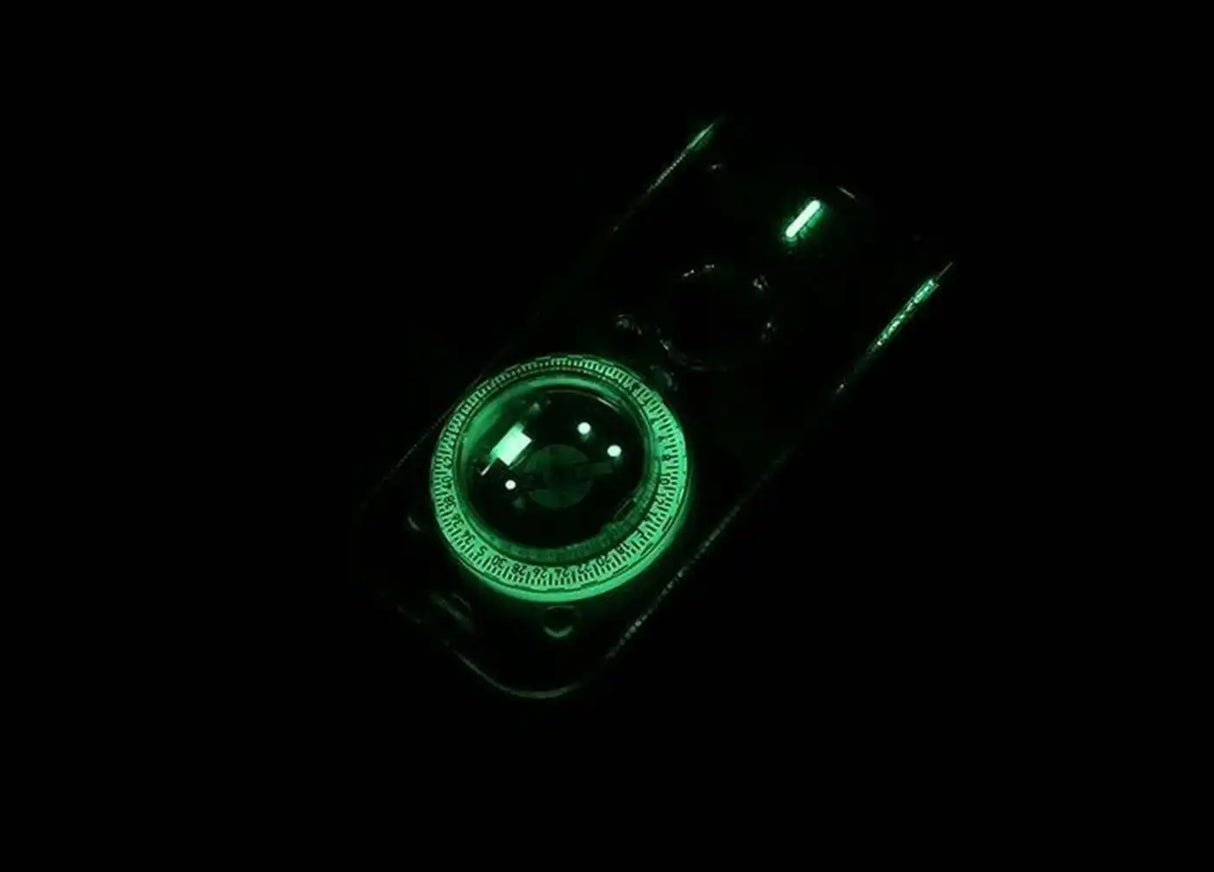

The compass includes a luminous graduation ring and markings, allowing for use in the dark after being activated by daylight or a flashlight, providing up to four hours of illumination. It has a 6400 mils graduation ring and both 6400 mils and 360 degrees on the sighting scale. Additionally, it comes with a Slope Card to assess avalanche risk and evaluate the difficulty of your journey. The Scale Lanyard, featuring 1:25 and 1:50 scales, is soft, flexible, and can be easily placed directly onto your map for route planning.

Available are 2 selection of sheaths for protection for your Silva 55-6400/360 Compass. The Compass Hard Cover and the Standard Covers using MILSPEC materials are both made to fit the Silva 55-6400/360 MS MILS Military Compass.

You may have noticed a Bubble in your Silva Compass. Is this a problem? Read the "Bubble in Compass" PDF link found at the bottom of this page to find out more.

NOTE: This compass is a Southern Hemisphere compass. Click and download the PDF below for more information and instructions on Silva Baseplate Compasses and Accessories.

Specifications

  • Material
    Acrylic
  • Weight
    39g
  • Size Range
    126 x 60 x 16mm
  • Water Resistance
    Waterproof
  • Temperature range
    Operating: -30°C to + 60°C
  • Downloads

Sizing Guide

Additional Information

  • Graduation outer ring: 6400°
  • Sighting scale: 6400/360
  • Sighting System: Prismatic Precision
  • Resolution: degrees / mils Outer ring: - / 50
  • Precision sighting scale: 1 / 20
  • Illumination / active time after activation in light: 4 hours
  • Measuring scales Baseplate: 1:25k, 1:40k, 1:50k, mm, inch
  • UTM position plotting scales (Romer Scales): 1:25k, 1:40k, 1:50k
  • Settling time from 90° angle within +/- 3°: 4 sec
  • Settling time from 90° angle to complete rest: 6 sec
  • Accuracy: +/- 0.5 degrees (8.9 mils)
  • Altitude use: 5000m @ -15°C
  • Impact resistance: 30g in XYZ directions and free fall from 1.5m height into gravel
  • Type of compass: SILVA 1-2-3 System, Baseplate Compass, Lensatic Precision Sighting System Compass, Mirror Sighting Compass
  • Liquid filled capsule
  • Sapphire jewel bearing
  • High quality steel needle
  • Hardened steel pivot
  • Magnifying lens: Yes
  • Declination adjustment: No
  • Clinometer: No
  • Luminous markings: Yes
  • Luminous graduation ring: Yes
  • Illumination / active time after activation in light: 4 hours
  • Silicon friction feet: Yes
  • Patented red/black N/S lines in capsule: Yes
  • GPS scales
  • Scale lanyard (1:25k, 1:50k)
  • Slope card
