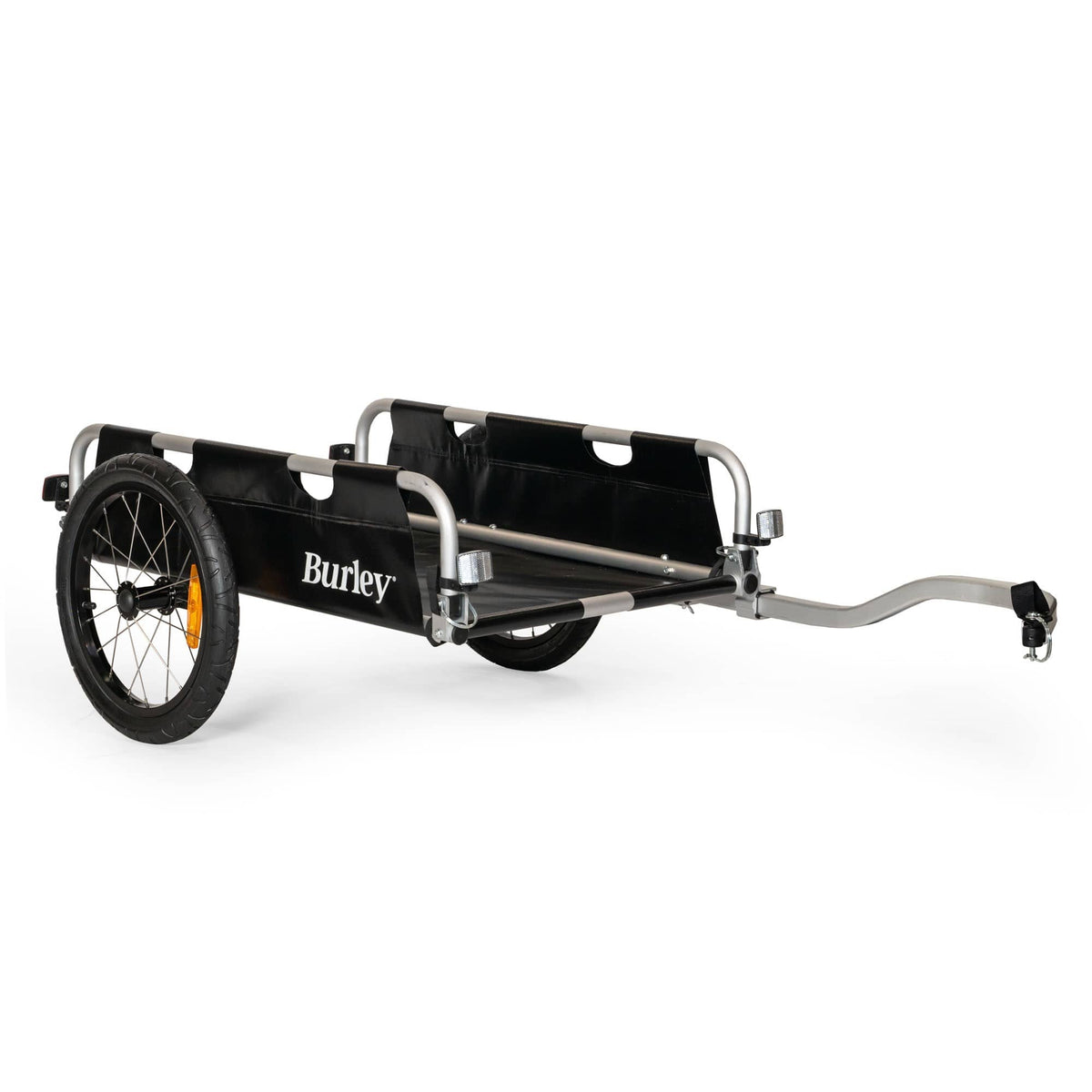

The Burley Flatbed is a two-wheel, open-platform cargo bike trailer rated to carry up to 45 kg (100 lb). Its open deck takes long and awkward loads that a closed trailer cannot, on a 7 kg 6061-T6 aluminium frame with 16 in push-button wheels. Hitch and tow arm come in the box, and the whole trailer folds flat.
What it is

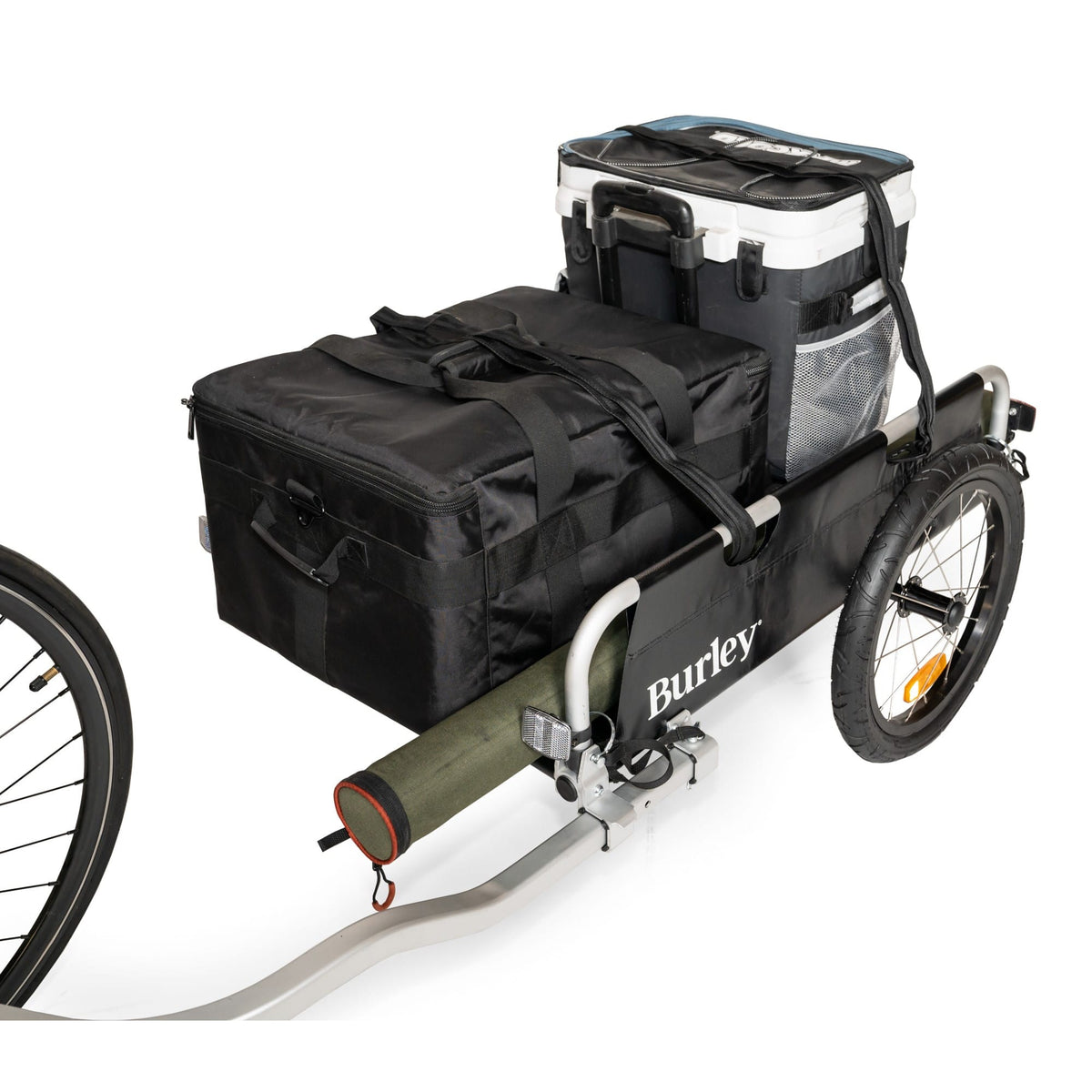

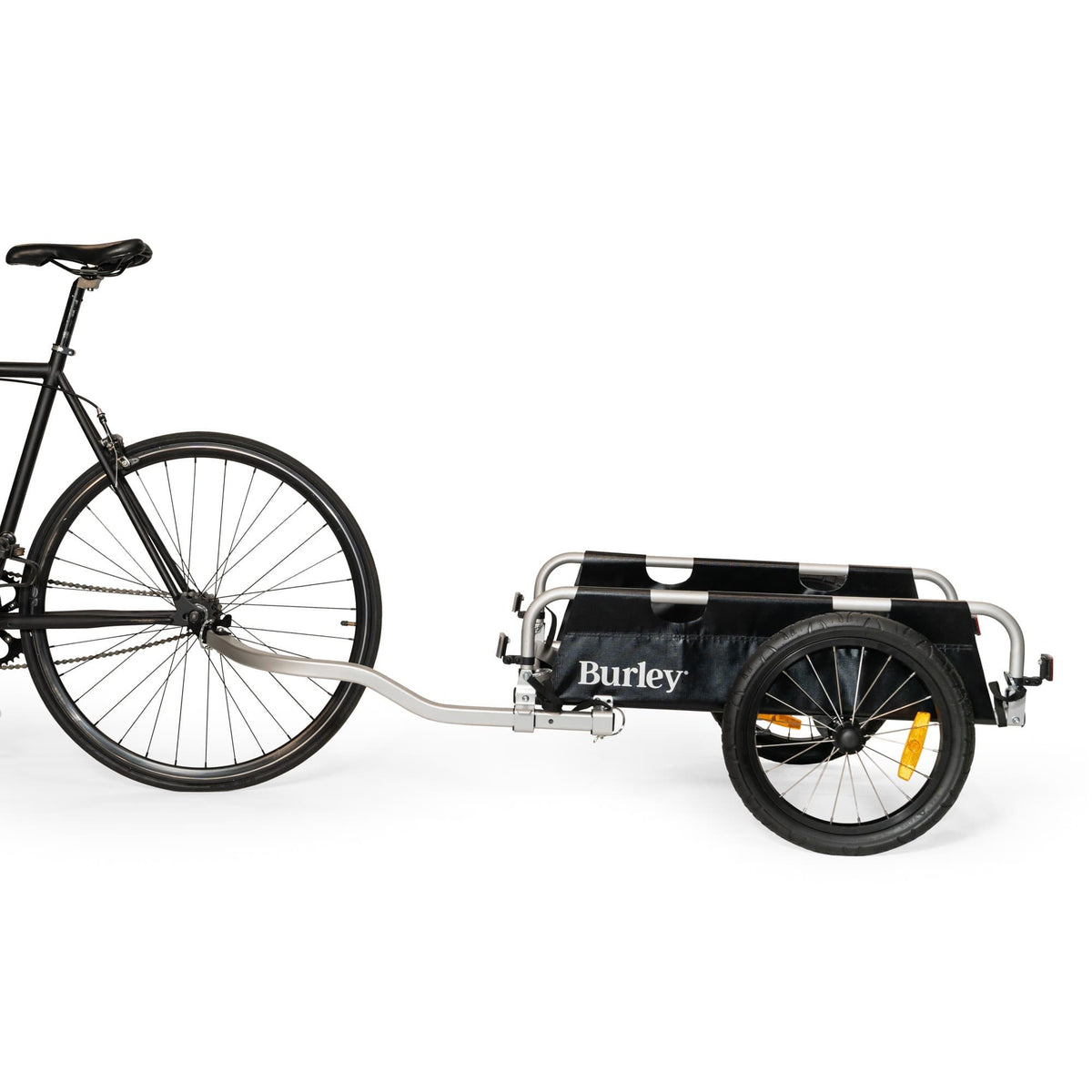

A flat, open cargo deck on two wheels that hitches to the back of your bike. The open cargo area means the gear that never fits a standard bike trailer goes on here: long items, bulky boxes, odd shapes. Strap it down to the attachment points around the frame with straps or bungee cords, or add Burley's Cargo Bungee Net to hold an uneven load in place.
Who it's for
Riders who want to move real loads by bike, from the weekly shop to a full set of camping gear. The Flatbed is built mainly for urban and road use, and handles light off-road use. Fit the Burley 16+ Wheel Kit and you get wider tyres with a more rugged tread for rougher ground. If your riding is mostly narrow, uneven trails or singletrack, the single-wheel Burley Coho XC is the better match.
Key details
- Load rating: 45 kg (100 lb)
- Trailer weight: 7 kg (15.1 lb)
- Cargo area: 82.5 cm long, 52 cm wide, 18 cm high
- Size open: 83.8 x 78.5 x 40.9 cm (L x W x H)
- Size folded: 84 x 63 x 10.7 cm (L x W x H)
- Wheels: 16 in (41 cm), push-button quick release
- Frame: 6061-T6 aluminium
- Hitch: forged aluminium, compatible with standard quick-release skewers, nutted axles; 12 mm thru-axle bikes need Burley's Thru Axle adapter, sold separately
- Flex connector keeps the trailer upright if your bike tips over or is laid flat
- In the box: Flatbed trailer, two wheels, tow arm and hitch, user's manual
How it compares
Next to Burley's single-wheel Coho XC, the Flatbed carries more weight and sits steady on two wheels, which suits urban and road use and light off-road riding. The Coho XC is the pick for tight, rough singletrack. Pick the Flatbed when the load is long, heavy or awkwardly shaped and your route stays on wider ground.
Setting up and packing away

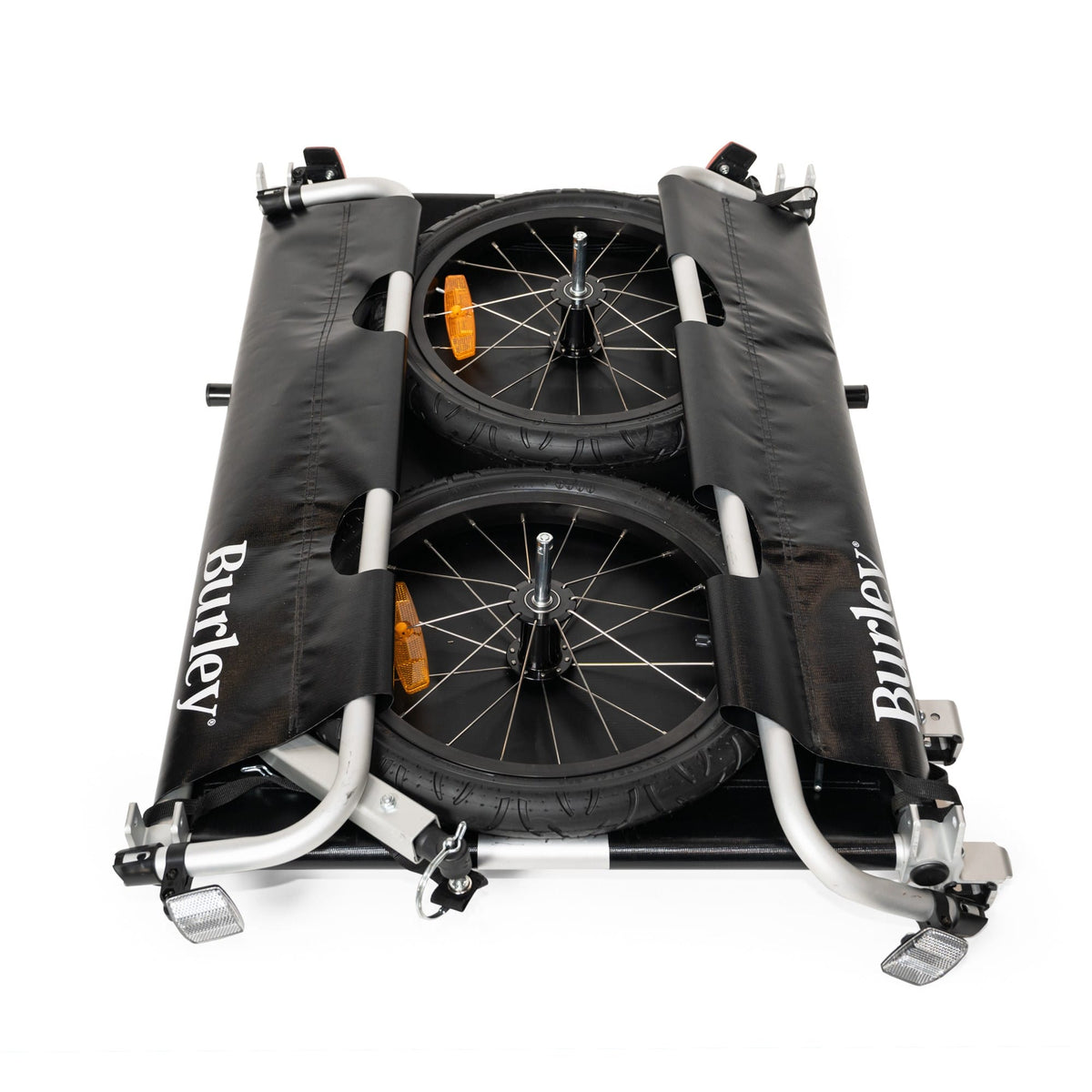

Out of the box the Flatbed goes together in under 10 minutes, and the hitch and tow arm are included, so you can ride away the same day. To pack it down, take off the side rails, press the buttons to pop the wheels off, and fold the trailer flat to 10.7 cm high for transport or storage.
