Description
Description

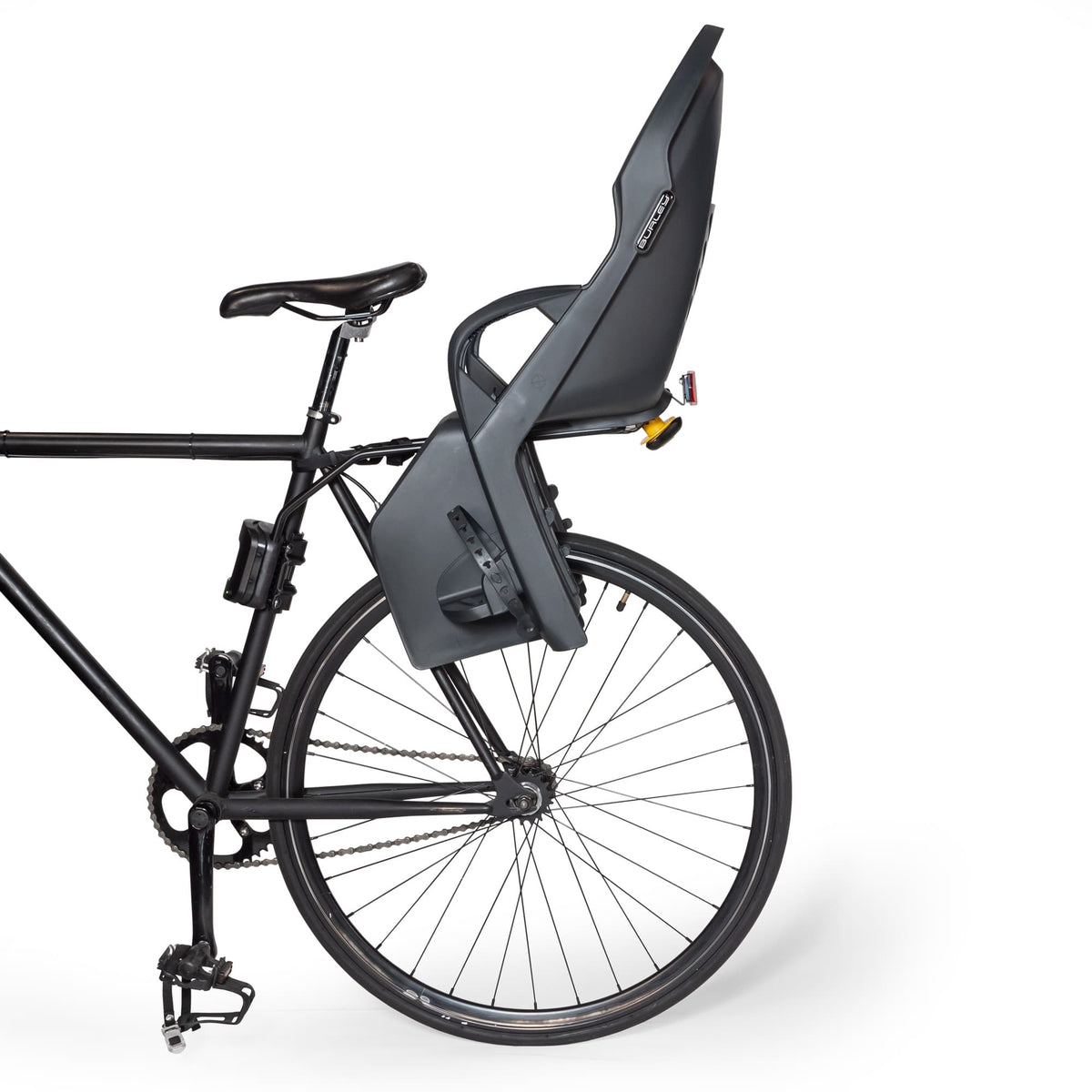

The Burley Dash FM 2024 is a frame-mounted rear child bike seat, sold here in the Standard Rails fitment. It carries one child from 12 months to 5 years, up to 18 kg including cargo, and mounts to round or oval frame tubes of 28-40 mm on 26", 27.5", 700C or 29" bikes, e-bikes included.
What it is

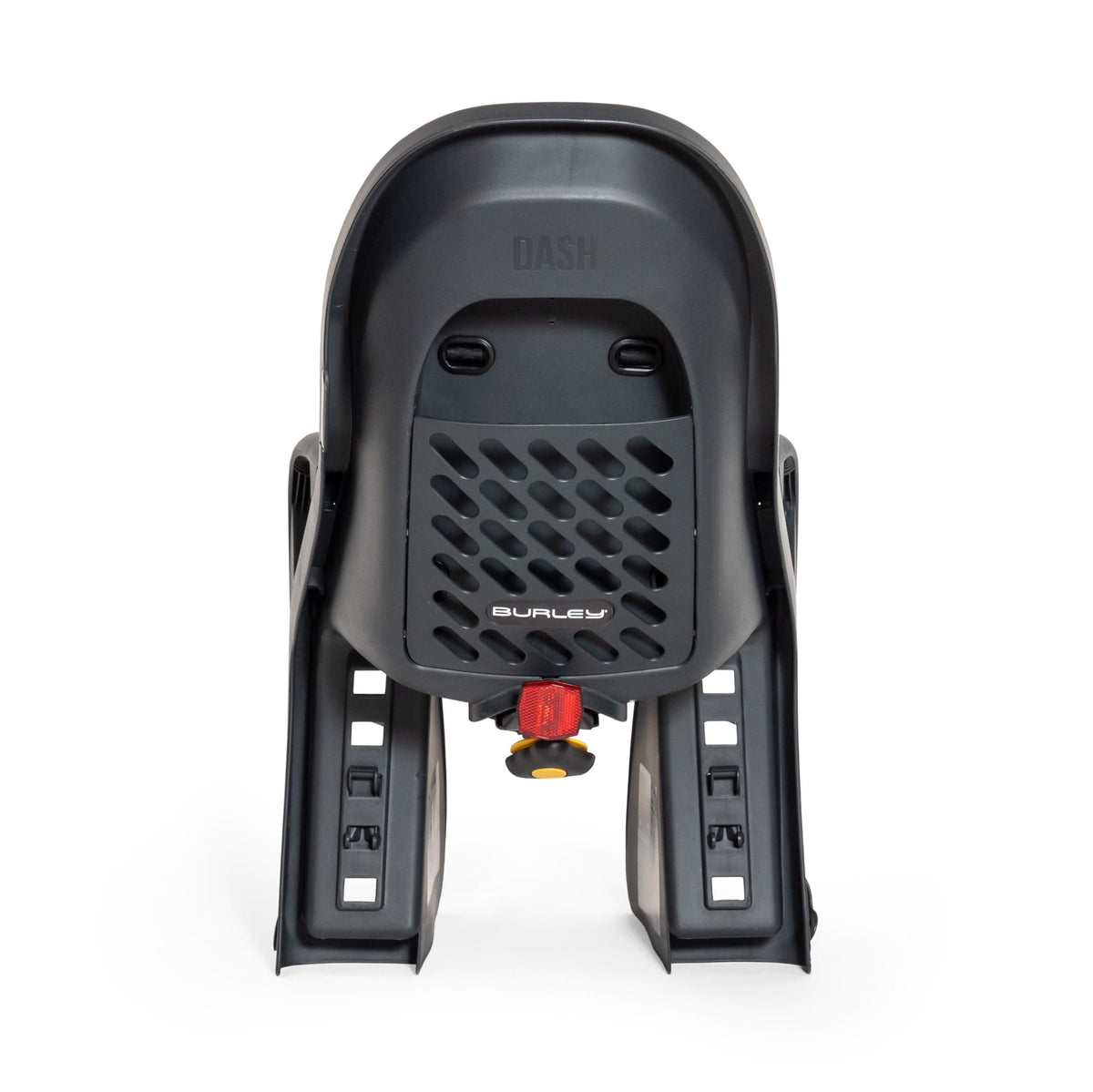

A rear child seat that mounts to your bike's frame and gets the whole family out riding together. It is quick to attach, built to be durable and easy to clean, and it has a small rear storage compartment for the essentials. In the box you get the Dash FM seat, mounting rails, a mounting block and the manual.
Who it's for
Parents riding with a child aged 12 months to 5 years. Whatever the age, the child must not exceed the 18 kg weight limit, and that 18 kg covers child and cargo together. If your little one is younger than 12 months, consult a paediatrician first.
Will it fit my bike?
The Dash FM must only be mounted to bikes that meet all of these:
- Round or oval frame tubes
- Tube diameter of 28-40 mm
- Seat tube at least 105 mm long
- Wheel diameter of 26", 650B/27.5", 700C or 29"
It is not compatible with full-suspension bikes, motorised vehicles, bikes with triangular or square tubes, or carbon-fibre frames. E-bikes are fine, as long as they meet the requirements above.
Meeting this list is not the whole check: the bike itself must also be suitable for carrying a child seat, so confirm that with your bike's maker before fitting.
Key details
- Fitment: Standard Rails
- Seat weight: 3.4 kg (3.9 kg with frame mounting block)
- Seat dimensions: 56.9 x 39.9 x 69.1 cm
- Colour: black and grey
- Maximum child weight: 18 kg
- Maximum nominal load: 18 kg, child + cargo
- Rear storage compartment: up to 1.0 kg
- Child age: 12 months to 5 years
Two bikes in the family?
Burley's Frame Mounting Block is a spare block for the Dash FM. Fit one to each of your bikes and the seat moves between them for quick transitions.
